EV-12 Mobile Emergency Pendant (mPERS)

All Eview enterprise partners can remotely manage large-scale deployments, execute FOTA updates, and monitor device status in real-time through our centralized management dashboard.

Features

The EV-12 mPERS ensures dependable emergency response and continuous tracking via a robust cellular and LoRa architecture. This integration maintains consistent signal transmission, less susceptible to indoor blind spots or charging interruptions. Engineered for precision, it delivers accurate fall detection with minimal false alarms, optimizing critical care and monitoring workflows.

Large SOS button

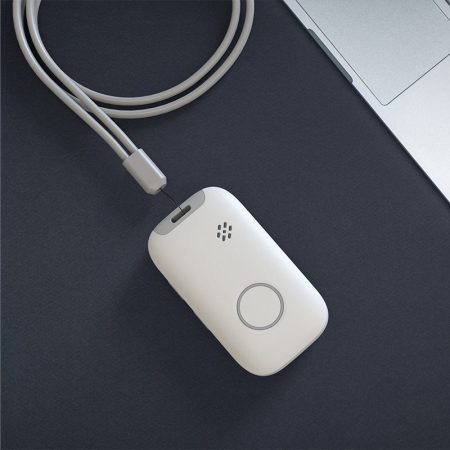

Lightweight pendant design

Call Button

Clear speaker

Core Capabilities

Reliable Emergency Protection When It Matters Most.

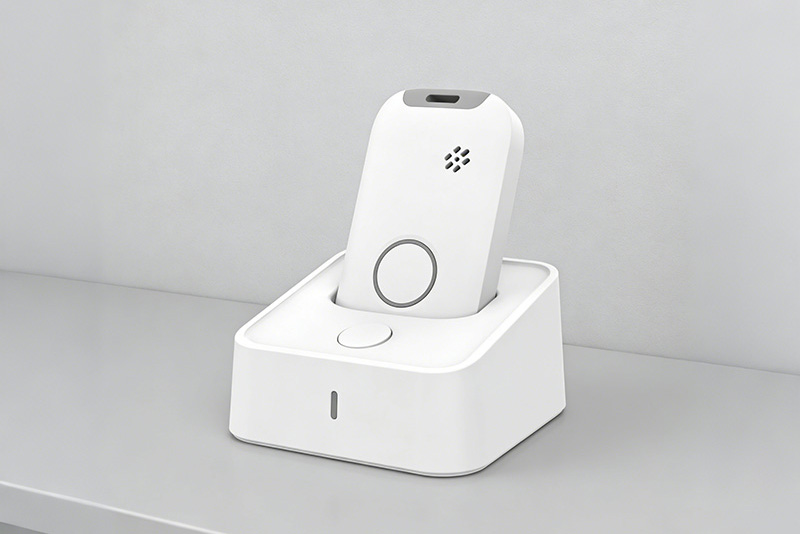

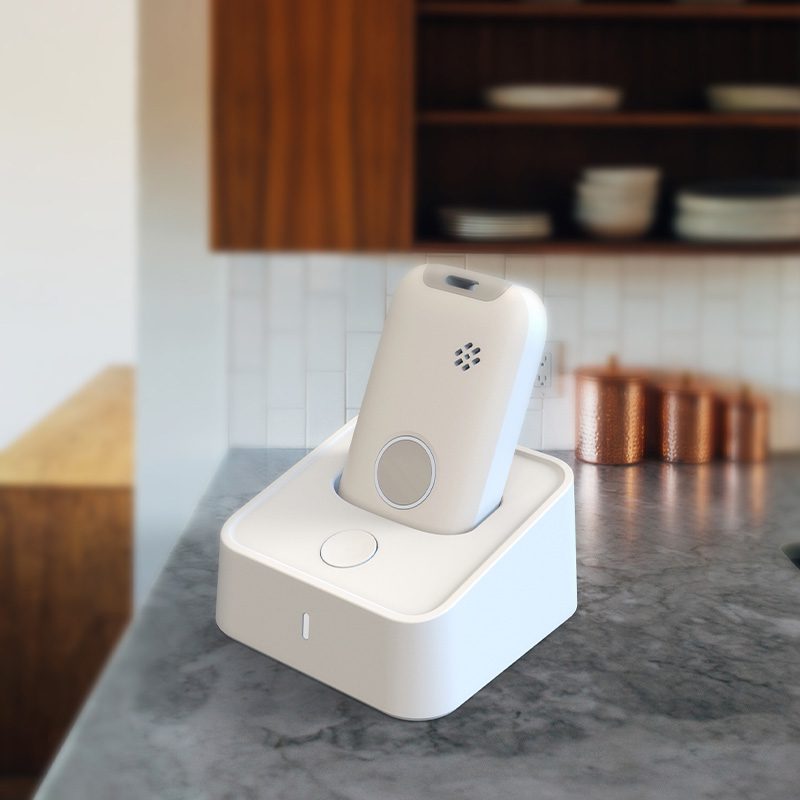

Continuous protection during charging

The EV-12 reduces monitoring blind spots during device charging cycles. Paired with a LoRa wristband, it maintains a 300-meter communication radius, helping keep users remain protected without wearing the main pendant.

An custom embedded NFC tag provides first responders with fast access to the user's medical profile. This reduces information delays and accelerates clinical rescue workflows during critical events.

Utilizing GPS, Wi-Fi, and BLE, the device delivers consistent real-time location data. Automated geo-fence alerts notify caregivers promptly when users exit designated safe zones, optimizing wander management for elderly care.

Built to IP67 standards, the device withstands daily water exposure. FOTA capabilities allow administrators to execute remote system updates, eliminating manual maintenance and reducing operational costs for large-scale deployments.

Technical Specifications

General Specifications

  • Dimension: 67.3 x 37.7 x 15mm
  • Weight: 43g
  • Battery: 3.7V, 720mAh (Li-Polymer)
  • Charging voltage: 5V DC
  • Waterproof: IP67 Standard
  • Operating Temp: -20°C to +60°C for working
  • Storage Temp: -20°C to +60°C for storage

Hardware & Connectivity

  • Positioning: Support AGPS, Wi-Fi (2.4GHz, 802.11 b/g/n), BLE 5.0
  • Receiver frequency: 1575.42MHz
  • Antenna: Built-in ceramic antenna
  • Sensors: Motion & fall detection sensor
  • SIM card slot: Nano SIM card
  • Audio: Built-in microphone & speaker
  • 4G LTE Bands:
    AU: B1/B3/B5/B7/B8/B28
    EU: B1/B3/B7/B8/B20
    North America: B2/B4/B12
    JP (Pending): B1/B18/B19/B26
  • LoRa Frequencies: Europe (868MHz), North America (906MHz), Australia (916MHz)

Certifications

  • CE, FCC, RoHS, PTCRB
  • AT&T, Verizon (Undergoing)

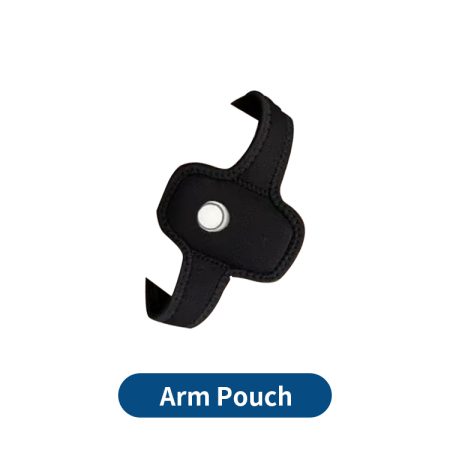

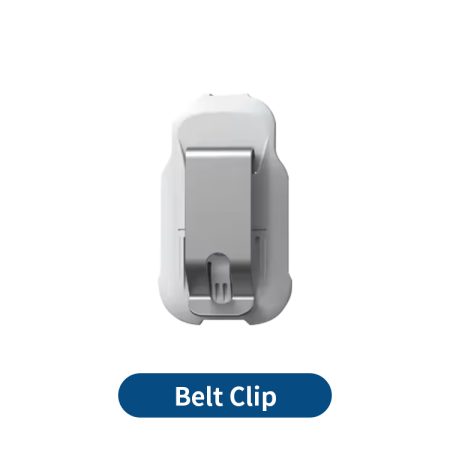

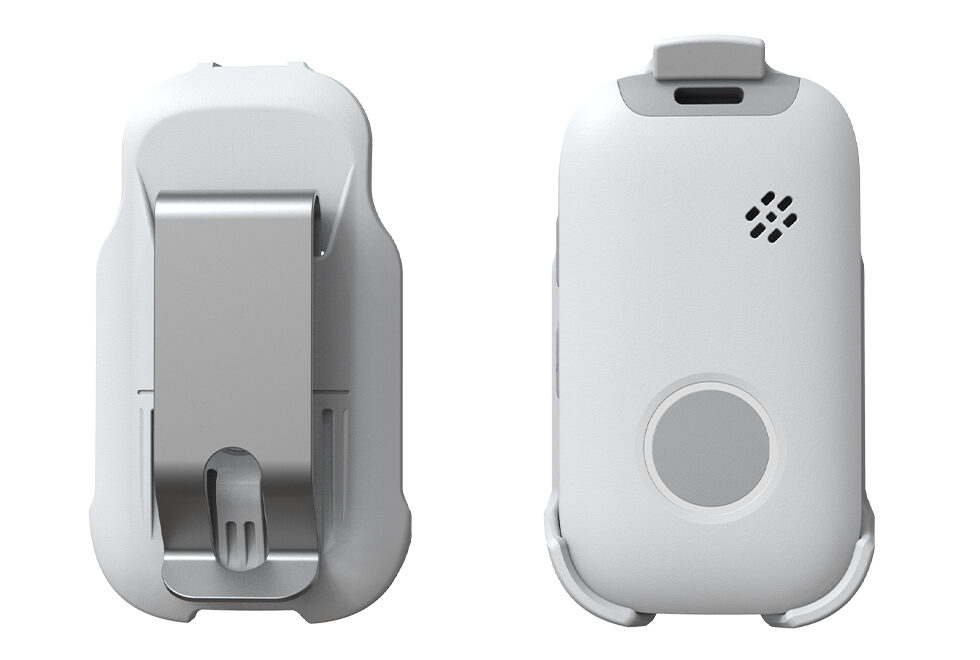

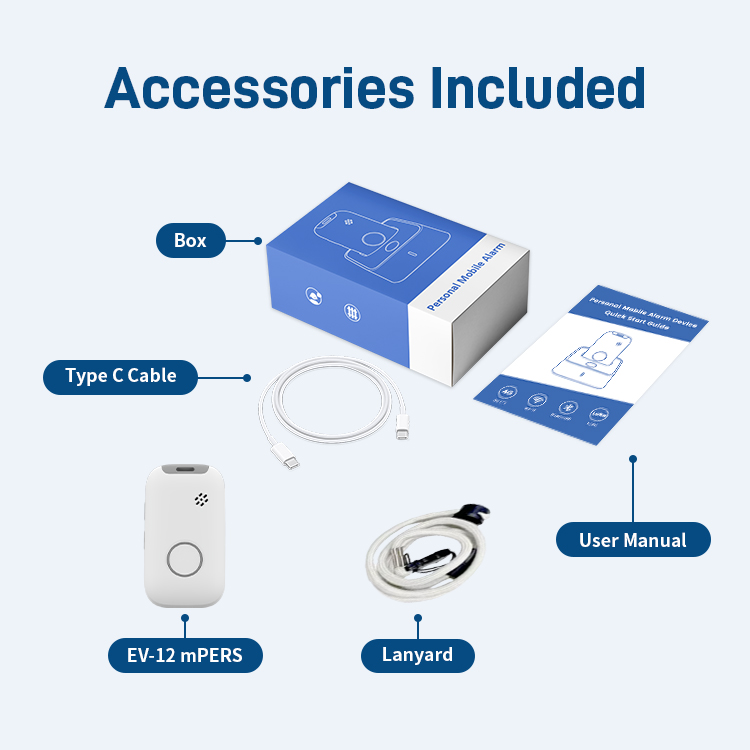

What’s in the Box
